PLASTIC SPIRAL Binding Equipment

ComboPlastic Spiral.
Roll-A-Coil
ECI Combo
1500
2500
Model TT

Coil Cut
350 Auto Crimper

Clipping and Bending Pliers

Service Calls, Training & Warranties

Prices subject to change without notice.

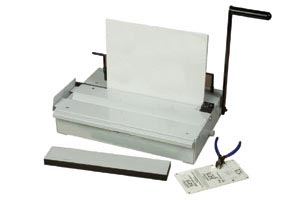

Combo:

A simple and inexpensive binding system. A combination manual punch with a Quik stick coil inserter. This countertop unit can punch up to 15 sheets of 20# bond per lift and is capable of binding books up to a 7/8" (22 mm) thickness. Rotating guide block for 8.5", 11", A4-12" & 14" paper edges.  Comes with finishing pliers and coil size calculator. Recommended for small office/copy shop use. 17"Wx12"Dx5"H, 28lbs.

Combo

Roll-A-Coil

A foot pedal operated electric roller coil inserter that, once paired with a manual or electric punch, gives you a complete plastic spiral binding system. This counter top unit is capable of binding books up to a 7/8" (22 mm) thickness. Alignment channel shapes the book to allow for easier coil insertion. Comes with finishing pliers and coil size calculator. Recommended for small office/copy shop use. 110 V single phase, 14"W x 10" D x 5" H, 15lbs.

Roll-A-Coil

ECI Combo::

A manual punch with a built in foot pedal operated electric roller coil inserter. This countertop unit can punch up to 15 sheets of 20# bond per lift and is capable of binding books up to a 7/8" (22 mm) thickness. Disengagement punch pins allow for centering of all common paper sizes. Alignment channel shapes the book to allow for easier coil insertion. Comes with finishing pliers and coil size calculator. Recommended for small office/copy shop use. 110 V single phase, 17"W x 15" D x 10" H, 59lbs.

ECI Combo

1500 Inserter:

Comes complete w/ cabinet, set of 7 mandrels, 2 seamless belts, clip & bending pliers and coil caliper. Productivity:  Approx. 300-350 books/hr. (Depending on operators ability.)  Binding capability: 6mm to 30mm. (1/8" to 1".)  Foot pedal operated.  110 V single phase.   Dimensions: 28"Wx24"Dx36"H (71cmx61cmx92cm). Weight: PBS 1500-55 lbs. (25 kgs), Cabinet-40lbs (18kgs).

1500 plastic spiral inserter.
Model TT

Table Top Inserter is designed for plastic spiral binding. The Table Top Inserter is suitable for inserting all of our available spiral binding diameters.

INSERTER TYPE:
Roller Inserter
24" Rollers

DRIVE MECHANISM:
Dual motor drive (for all sizes)
Continues duty safety stall-out
110v single phase
72 DBA
UL approved

OVERALL MACHINE DIMENSIONS:
21" deep x 29" wide x 8" high
Shipping Weight: 55

2500 Inserter:

Roller binder comes complete w/ integrated lever actuated crimping, built in accessory tray, clip and bend pliers and coil caliper. Productivity:  As high as 350 books/hr.  Binding capability: 6mm to 30mm. (1/8" to 1".)  Cut & bend capabilities: 8mm thru 30mm, 6&7mm finished w/ included clip and bend pliers. 110 V single phase. Dimensions: 19"Wx15"Dx11"H (48cmx38cmx28cm).  Weight: 55 lbs. (25 kgs).

2500 inserter.

Coil Cut:

Coil Cut for Plastic Spiral:
An easy way of locking the coil into the books.

Coil cut.
350 Auto Crimper:

Electric or air commercial automatic cutter crimper for plastic spiral.  (350 shown with optional Roller Inserter.)

  • Crimps 6mm through 50mm coil
  • Minimum binding edge is 3 1/2 inches
  • Coil waste chute
  • 50 cycles per minute
  • 14 inch binding length
  • Foot pedal operation
  • 90 degree cut angle
  • Uses standard plastic grocery bag for clipping containment
  • Perfect crimp every time
  • Interchangeable cutter blades

    A - cutter blades 6mm - 7mm

    B - cutter blade 8mm - 25mm, (The 350 comes assembled with set B)

    C - cutter blades 12mm - 50mm

  • Air specifications for 350A:
    Maximum Air - 120 PSI
    No Electricity Required
  • Electrical specifications for 350A:
    120 Volts, 4 amps, 50/60 Hz
    No Air Required
  • Shipping Weight: 50 lbs.

350 Auto Crimper:  Call for pricing.
Click here to order

Marlon 350 shown with optional Roller Inserter.

Clipping and bending pliers:

  • Red Handle Plastic Spiral Clip & Bend Pliers

  • Blue Handle Plastic Spiral Clip & Bend Pliers

  • White Handle Plastic Spiral Clip & Bend Pliers, 2.0R
    Click here to order

Clipping and bending pliers.

Service Calls, Training & Warranties:

Yearly Service Contract: Call for information.  At SGM dock.
Individual Service Calls: Minimum $ 95.00 evaluation fee.   Evaluation fee applied to repair.
$ 75.00 per hour billing rate plus material.
Training: $95.00 per hour, minimum of 1 hour.
Warranties: 90 days on defective workmanship.  Customer is responsible for transportation.
Loaner machines available at additional cost.
Call for more information.
